Chicago Metallic T24 Click D2890 ECR Class D
T24 bärverkssystem med full höjd (38 mm) och extra korrosionsbeständigt ytskikt
- Produktutbildning
- Stöd genom hela processen.
- Tillverkad i Europa
Overview
A versatile Chicago Metallic grid engineered to scale into a high-performing system – ready to endure the harshest, most corrosive elements with resilience.
Ready for Class D.
All grid components are extra-galvanised with an Enhanced Corrosion Resistant finish for EN 13964 Class D environments such as swimming pool facilities and kitchens.
Install with ease.
Easily install and dismantle the grid. An audible “click” at connection provides guidance to facilitate and accelerate installation.
Service-ready.
The main runner and cross tees feature a uniform 38mm height, improving load-bearing capacity for increased compatibility with ceiling-mounted accessories.
Engineered for more.
Pair with complementary components and humidity-resistant Rockfon® acoustic tiles to create systems with increased stability, impact resistance, low installation height, and 33% faster installation.
Sortiment (Chicago Metallic T24 Click D2890 ECR Class D)
Bärprofil
Tvärprofil
Tvärprofil
Vägglist
Vägglist
Tillbehör (6)
Upper part nonius hanger / bent / ECR class D
- Length 85mm
- Enhanced Corrosion Resistant finish
- For use in harsh, Class D environments, eg. swimming pool areas, kitchens etc.
- Durability: class B
- 50pcs/ctn

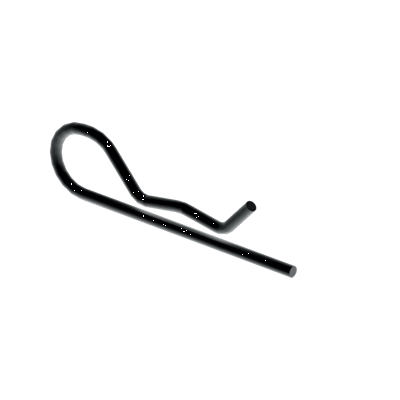

Corrosion resistant intersection clip
- For NH D
- 2 clips per hanger
- Durability: class D
- max load 40kg
- 100pcs/ctn

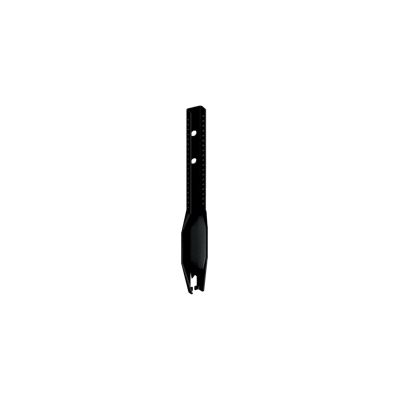

NH DT
- Combined with NH D and NH D clip
- For T profiles with a bulb of 11x6,5
- Durability: class D
- max load 20kg
- 50pcs/ctn
Specifikationer
För mer information om Chicago Metallic T24 Click D2890 ECR Class D kan du ladda ner produktdatabladet eller kontakta oss.
